Used 2015 Scarab 12HYD-275-D5 | Tracked Compost Windrow Turner
Have one to sell?
ConditionUsed
1 available
$159,000.00 USD

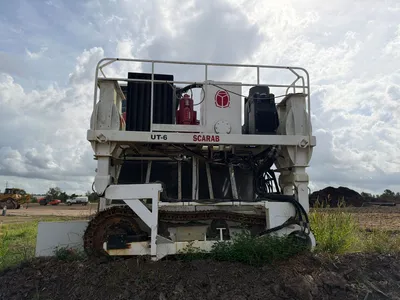

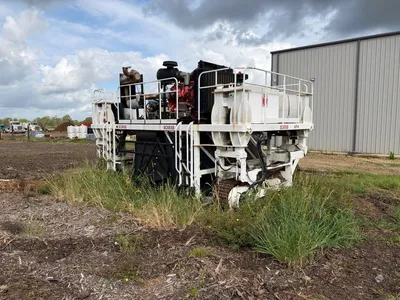

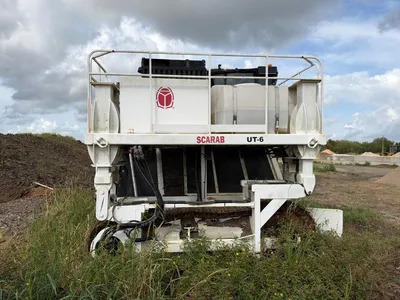

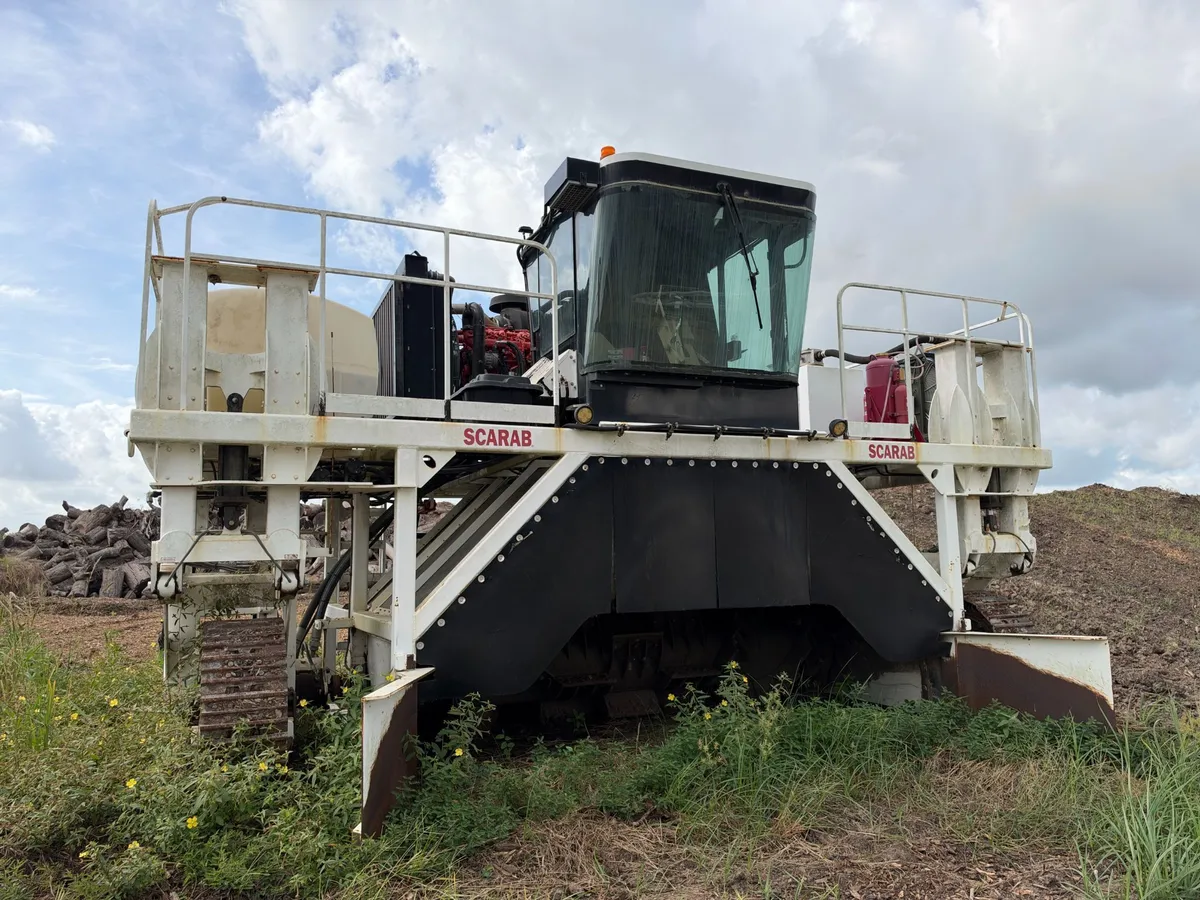

2015 Scarab 12HYD-275-D5 Tracked Compost Windrow Turner – Only 235 Hours
This 2015 Scarab 12' self-propelled straddle turner has only 235 hours on the meter. It's a low-use, tracked Scarab with the full cab and safety package, and it's powered by a Tier 4 Final engine, so it can go to work on emissions-regulated sites.

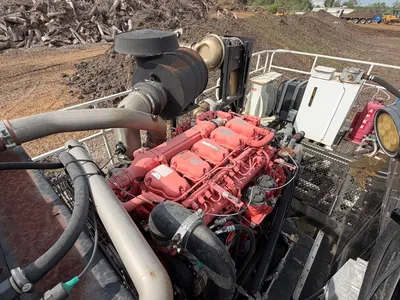

Engine: Scania DC09 084A, 275 hp, Tier 4 Final (SCR, no DPF)
Hours: 235
Tunnel: 12' W × 12' H
Drum: 12' auger-style flail drum, 32" diameter, hydraulic drive (Rineer drum motor)
Undercarriage: CAT D5-style tracks with 15" triple-grouser pads
Hydraulics: Sauer-Danfoss 90-series pumps, PVG lift valves, hydraulic tank heater

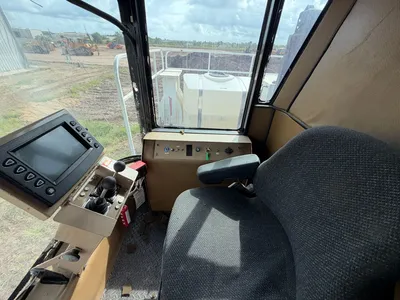

Cab: Panoramic enclosed cab with A/C and heat, external cab air filtration, air-ride Sears seat, jump seat
Visibility and controls: Heated night-vision rear camera with in-cab monitor, joystick control handle, load controller
Safety and maintenance: AFEX automatic fire suppression system (2 × 60 lb), Graco automatic lubrication system on lift and drive

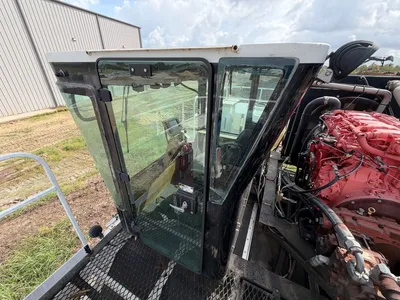

SCPA5000 PANORAMIC CAB
AC & Heat Unit 331-12V (331-12A HEAT/COOL Ceiling Mnt.)
R-9720 Remoute Mount Condensor
DTAC 11-37523 External Cab Air Filter
Door Latch (Slam Lock System HI 550)

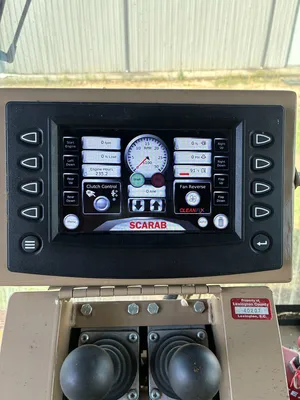

Cab Monitor (PV780 2XPDM & Harness) **Enovations Controls
Cable-10M (10M (33ft) Camera Cable, Screw Type)
Camera-OP31-IR (Sony Heated night vision color camera w/audio)
Control Handle MCH41BD1043
Fire Ext. (10# Fire Extinguisher)
4C993 Vibration Isolator
Load Controller 0007-6500
Pioneer CD Player
EMC 5380X BLK Jump Seat
Sears 4000 SS-20008.901-K1 (Includes armrests))
Speakers (6-1/2" 2 Way)
Wiper Blade Imtra RC520824 24' Stainless
Work Light (20 Watt Work Light)
Wiper Motor RC525991 (Imtra RC525991 Wiper Motor)
SCAU3200 1/2" X 32" X 12' AUGER STYLE DRUM
Drum Shaft Coupling (Inner) 2-7/8" C405 E 287
Drum Shaft Coupling (outer) 3" C405 E 300
Drum Bearing Dodge P2B-IP-300RE (Idler Side)
Drum Bearing Dodge P2B-IP-300R (Drive Side)
Drum Shaft Drive Side 3" X 20-3/8
Drum Shaft Idler Side 3" X 22-7/8 "
Drum Insert- Center (12)
Drum Insert- Outer (40)
Drum Insert Bolt- 3/4" X 2" (1116)
Drum Insert Nylock - 3/4" (116)

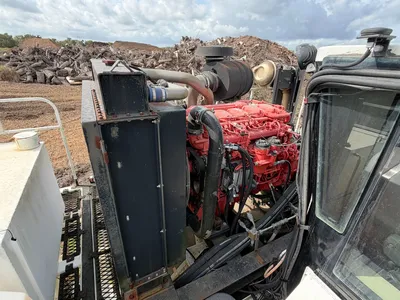

ENGINE
SCANIA DC09 (SCANIA DC09 084A 275HP / 202KW)
Fuel Cap-2" Vented
Wiring Harness (SCANIA Wiring Harness 32000132)

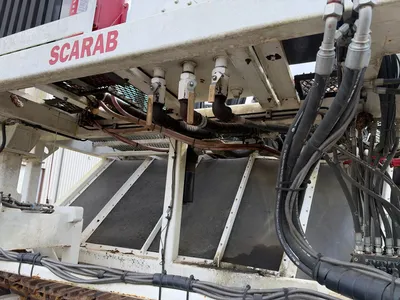

HYDRAULICS
Check Valve CP100-3-B-0-005
Check Valve CP210-1-B-0-E-C
Check Valve CP300-1 Flow Control
Connector MS3106E-14S-2S Lift Circuit Wire Housing
Connectors KA042-000B1 Valve Connectors PVG
Drum Motor-M037-D2-2S-037-30-T1-TVD-000 Rineer HYD Drum Motor
Drum Pump 55 CC
Filler Breather AB-1000-6
Flap Manifold 15-5222
Fluid Level Gauge P17-1922 (Donaldson))
Heat Exchanger- (HPV52-0.58S-0JE-22)
Hydrostatic Pressure Filter HS60-13HZ10-V-F32-D13
Level Switch WEB0045636
Lift Cylinder 4.5" X 16" (Hercules - HTR4516 Cylinder CC 28.25)
Lift Cylinder 5” X 12" (Hercules- HTR5012 Cylinder CC 24.25)
Lift Pump SNP 3/26 SSC07 111.25.012.0A
Lift Valve PVG 4B (159U0823 (4 Bank) Lift Valve)
Lift Valve PVG 5B (159S8883 (5 Bank) Lift Valve)
M037-D2 (Motor M037-D2-2S-037-30-T1-TVD-000)
Manifold 15-4203 (Relief Manifold 15-4203)
Pump 90M055NC0N8N0S1W00NN000024
Pump Drive 2 Pad-2PD08-1.40I-D11-DDH-CCH-LS
Pump-130 90R130KA1NN80L3F1F03GBA171724
Pump-90L055KA1CD80P4S1C03GBA171724
Pump-90L055KA1NN80P4S1C03GBA171724
Pump-90L130KA1BC80L4F1F03GMA072624
Rear Flap Cylinder 3" X 8 " DB
RT-1KZ10-S24-S24-Y2
Sterling Valve A06G2PZN
Strainer-SS-2-100
Tank Heater -Watlow BGS717J6-W21
TRACKS
Bearing Dodge F4B-SCM-300
Torque Hub Shaft-6"
Track Chain D5 42X (CR-4264-42X SALT Rail (D5))
Track Cylinder 5" X 8" Cross
Track Idler D5 (CR-3171 D5 Idler)
Track Idlers D5 DF (CR-6153 Double Flange Rollers D5)
Track Manifold 15 (15-5221 Track Tension Manifold )
Track Pad Bolts D5 (7H-3597 D5 Track Pad Bolts)
Track Pad Nuts D5 (1M1408 D5 Track Pad Nuts)
Track Pads 15" D5 (CR-3229/15 D5 (15" Triple Grouser))
MISCELLANEOUS
50/50 Antifreeze (6/1 Gal-OAT 50/50 Antifreeze)
Lubrication System (Graco G# Pro Auto Lubrication System for Lift and Drive)
Fire Supression System (AFEX Automatic Fire Suppression System 60# X 2 ABC)
B-LOC C600 Type 80 (Type 80 C600E-300x237 (3" x 2-3/8"))
